STM32F746을 이용해 사거리 신호등 만들기 프로젝트 본문
<사거리 신호등 만들기 프로젝트>
<동작내용>
- 4거리 신호등 중 붙어있는 3방향의 신호 각 4개를 제어
- 일정한 시간이 흐르면 다음 step으로 넘어가야 함. 반복됨.
- 한방향 기준으로 파란불->노란불->빨간불/좌회전-> ….... 이렇게 1번의 step이 무한반복
- 1 set이 지날때마다 LED 4개의 바이너리 카운트 표시
- 1111이 최대이며, 그 다음은 0000
- 메인보드 내의 리셋 스위치
- 단, 리셋 스위치는 누른 후 땔 때에만 작동
- 파란불이 꺼질때까지 남은시간을 7segment에 표시
- 각 거리의 신호에 맞는 횡단보도 LED 꺼지기 2초전에는 빠르게 깜빡이게함 (파란불)
- 외부보드에 Skip 스위치 기능
<동작영상>
<소스코드>
#ifndef SRC_MAIN_H_
#define SRC_MAIN_H_
#endif
#ifndef SRC_BSP_BSP_H_
#define SRC_BSP_BSP_H_
#include "def.h"
#include "stm32f7xx_hal.h"
static void SystemClock_Config(void);
#endif
void hwInit(void);
void MyApp();
static void SystemClock_Config(void)
{
RCC_ClkInitTypeDef RCC_ClkInitStruct;
RCC_OscInitTypeDef RCC_OscInitStruct;
/* Enable HSE Oscillator and activate PLL with HSE as source */
RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
RCC_OscInitStruct.HSEState = RCC_HSE_ON;
RCC_OscInitStruct.HSIState = RCC_HSI_OFF;
RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
RCC_OscInitStruct.PLL.PLLM = 25;
RCC_OscInitStruct.PLL.PLLN = 432;
RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV2;
RCC_OscInitStruct.PLL.PLLQ = 9;
if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
{
//Error_Handler();
}
/* activate the OverDrive to reach the 216 Mhz Frequency */
if (HAL_PWREx_EnableOverDrive() != HAL_OK)
{
//Error_Handler();
}
/* Select PLL as system clock source and configure the HCLK, PCLK1 and PCLK2
clocks dividers */
RCC_ClkInitStruct.ClockType = (RCC_CLOCKTYPE_SYSCLK | RCC_CLOCKTYPE_HCLK | RCC_CLOCKTYPE_PCLK1 | RCC_CLOCKTYPE_PCLK2);
RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV4;
RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV2;
if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_7) != HAL_OK)
{
//Error_Handler();
}
}
int main(void)
{
hwInit();
MyApp();
}
void hwInit(void)
{
SCB_EnableICache();
SCB_EnableDCache();
HAL_Init();
SystemClock_Config();
}
int DelayWithBTN(unsigned int n) {
n = n * 100000;
int r = 0;
while (n--) {
// sw2 눌리면
if ((*(volatile unsigned int*)0x40020810U & 0x00001000U)) {
r = 2;
}
// sw1 눌리면
if (*(volatile unsigned int*)0x40021810U & 0x00000008U) {
r = 1;
}
}
return r;
}
// n =10 --> 1초
void MyDelay(unsigned int n)
{
volatile unsigned int delay;
for (delay = 0; delay <= n * 3600000; delay++);
}
void verticalCrossBlueOn()
{
// pf10 (세로신호등 파란불)
// a1
*(volatile unsigned int*)(0x40021418U) |= 0x00000400U;
}
void verticalCrossBlueOff()
{
// pf10 (세로신호등 파란불)
// a1
// 끄기
*(volatile unsigned int*)(0x40021418U) |= 0x04000000U;
MyDelay(2);
}
void verticalCrossRedOn()
{
// pf9 (세로신호등 빨간불)
// a2
// 켜기
*(volatile unsigned int*)(0x40021418U) |= 0x00000200U;
}
void verticalCrossRedOff()
{
// pf9 (세로신호등 빨간불)
// a2
// 켜기
*(volatile unsigned int*)(0x40021418U) |= 0x02000000U;
}
void verticalCrossBlueBlink()
{
// pf10 (세로신호등 파란불)
// a1
// 끄기
*(volatile unsigned int*)(0x40021418U) |= 0x04000000U;
MyDelay(2);
// 켜기
*(volatile unsigned int*)(0x40021418U) |= 0x00000400U;
MyDelay(2);
}
void horizontalCrossBlueOn()
{
// pf8 (가로신호등 파란불)
// a3
*(volatile unsigned int*)(0x40021418U) |= 0x00000100U;
}
void horizontalCrossBlueOff()
{
// pf8 (가로신호등 파란불)
// a3
// 끄기
*(volatile unsigned int*)(0x40021418U) |= 0x01000000U;
MyDelay(2);
}
void horizontalCrossRedOn()
{
// pf7 (가로신호등 빨간불)
// a4
// 켜기
*(volatile unsigned int*)(0x40021418U) |= 0x00000080U;
}
void horizontalCrossRedOff()
{
// pf7 (가로신호등 빨간불)
// a4
// 켜기
*(volatile unsigned int*)(0x40021418U) |= 0x00800000U;
}
void horizontalCrossBlueBlink()
{
// pf8 (가로신호등 파란불)
// a3
// 끄기
*(volatile unsigned int*)(0x40021418U) |= 0x01000000U;
MyDelay(2);
// 켜기
*(volatile unsigned int*)(0x40021418U) |= 0x00000100U;
MyDelay(2);
}
void countSet(unsigned char data) {
// 1번 led
if ((data >> 3) & 0x01) {
// 1이면 켜기
TurnOnOneLED(1);
}
else {
// 0이면 끄기
TurnOffOneLED(1);
}
// 2번 led
if ((data >> 2) & 0x01) {
// 1이면 켜기
TurnOnOneLED(2);
}
else {
// 0이면 끄기
TurnOffOneLED(2);
}
// 3번 led
if ((data >> 1) & 0x01) {
// 1이면 켜기
TurnOnOneLED(3);
}
else {
// 0이면 끄기
TurnOffOneLED(3);
}
// 4번 led
if ((data) & 0x01) {
// 1이면 켜기
TurnOnOneLED(4);
}
else {
// 0이면 끄기
TurnOffOneLED(4);
}
}
int MyDelayWithCheckSwitch(unsigned int n)
{
volatile unsigned int delay;
int flag = 0; // 내부 sw1 눌리면 1, 때면 2
// n = 10 -> 1초
for (delay = 0; delay <= n * 800000; delay++)
{
// 내부 sw1 눌리면
if (*(volatile unsigned int*)0x40020810U & 0x00001000U) {
flag = 1;
}
// 내부 sw1 눌렸다 때면
if (flag == 1) {
if ((*(volatile unsigned int*)0x40020810U & 0x00001000U) == 0) {
flag = 2;
countSet(0);
}
}
// 외부 스위치 (pc1) 눌리면 바로 return
if (*(volatile unsigned int*)0x40020810U & 0x00000002U) {
flag = 3;
}
// 외부 스위치 (pc1) 눌렸다 때면
if (flag == 3) {
if ((*(volatile unsigned int*)0x40020810U & 0x00000002U) == 0) {
flag = 4;
return flag;
}
}
}
return flag;
}
int MyDelayWithCheckSwitchSeg(unsigned int n)
{
volatile unsigned int delay;
int flag = 0; // 내부 sw1 눌리면 1, 때면 2
// n = 10 -> 1초
for (delay = 0; delay <= n * 800000; delay++)
{
if(delay == 7000000)
{
segment(112);
}
if(delay == 14000000)
{
segment(95);
}
if(delay == 21000000)
{
segment(91);
}
if(delay == 28000000)
{
segment(51);
}
if(delay == 35000000)
{
segment(121);
}
if(delay == 42000000)
{
segment(109);
}
if(delay == 49000000)
{
segment(48);
}
if(delay == 55500000)
{
segment(126);
}
if(delay)
// 내부 sw1 눌리면
if (*(volatile unsigned int*)0x40020810U & 0x00001000U) {
flag = 1;
}
// 내부 sw1 눌렸다 때면
if (flag == 1) {
if ((*(volatile unsigned int*)0x40020810U & 0x00001000U) == 0) {
flag = 2;
countSet(0);
}
}
// 외부 스위치 (pc1) 눌리면 바로 return
if (*(volatile unsigned int*)0x40020810U & 0x00000002U) {
flag = 3;
}
// 외부 스위치 (pc1) 눌렸다 때면
if (flag == 3) {
if ((*(volatile unsigned int*)0x40020810U & 0x00000002U) == 0) {
flag = 4;
return flag;
}
}
}
return flag;
}
// 세로 횡단보도 파란불 깜빡 포함된 Delay
int MyDelayWithCheckSwitchVerticalBlink(unsigned int n)
{
volatile unsigned int delay;
int flag = 0; // 내부 sw1 눌리면 1, 때면 2
for (delay = 0; delay <= n * 100000; delay++)
{
if (delay % 400000 == 0) {
verticalCrossBlueOn();
}
if (delay % 800000 == 0) {
verticalCrossBlueOff();
}
if (delay % 1200000 == 0) {
verticalCrossBlueOn();
}
if (delay % 1600000 == 0) {
verticalCrossBlueOff();
}
if (delay % 1900000 == 0) {
verticalCrossBlueOn();
}
// 내부 sw1 눌리면
if (*(volatile unsigned int*)0x40020810U & 0x00001000U) {
flag = 1;
}
// 내부 sw1 눌렸다 때면
if (flag == 1) {
if ((*(volatile unsigned int*)0x40020810U & 0x00001000U) == 0) {
flag = 2;
countSet(0);
}
}
// 외부 스위치 (pc1) 눌리면 바로 return
if (*(volatile unsigned int*)0x40020810U & 0x00000002U) {
flag = 3;
}
// 외부 스위치 (pc1) 눌렸다 때면
if (flag == 3) {
if ((*(volatile unsigned int*)0x40020810U & 0x00000002U) == 0) {
flag = 4;
return flag;
}
}
}
return flag;
}
// 가로 횡단보도 파란불 깜빡 포함된 Delay
int MyDelayWithCheckSwitchHorizontalBlink(unsigned int n)
{
volatile unsigned int delay;
int flag = 0; // 내부 sw1 눌리면 1, 때면 2
for (delay = 0; delay <= n * 100000; delay++)
{
if (delay % 400000 == 0) {
horizontalCrossBlueOn();
}
if (delay % 800000 == 0) {
horizontalCrossBlueOff();
}
if (delay % 1200000 == 0) {
horizontalCrossBlueOn();
}
if (delay % 1600000 == 0) {
horizontalCrossBlueOff();
}
if (delay % 1900000 == 0) {
horizontalCrossBlueOn();
}
// 내부 sw1 눌리면
if (*(volatile unsigned int*)0x40020810U & 0x00001000U) {
flag = 1;
}
// 내부 sw1 눌렸다 때면
if (flag == 1) {
if ((*(volatile unsigned int*)0x40020810U & 0x00001000U) == 0) {
flag = 2;
}
}
// 외부 스위치 (pc1) 눌리면 바로 return
if (*(volatile unsigned int*)0x40020810U & 0x00000002U) {
flag = 3;
}
// 외부 스위치 (pc1) 눌렸다 때면
if (flag == 3) {
if ((*(volatile unsigned int*)0x40020810U & 0x00000002U) == 0) {
flag = 4;
return flag;
}
}
}
return flag;
}
int CheckClockStatus(int GOIOPort)
{
if (*(volatile unsigned int*)0x40023830U & (1 << (GOIOPort - 1)))
{
return 1;
}
else
return 0;
}
void ClockEnable(int GOIOPort)
{
*(volatile unsigned int*)0x40023830U |= 1 << (GOIOPort - 1);
}
void TurnOnOneLED(unsigned char No)
{
// 1번켜기
if (No == 1) {
if (CheckClockStatus(7) == 0) {
ClockEnable(7);
}
*(volatile unsigned int*)0x40021800U |= 0x01000000U;
*(volatile unsigned int*)0x40021808U |= 0x03000000U;
*(volatile unsigned int*)0x4002180CU |= 0x01000000U;
*(volatile unsigned int*)0x40021818U |= 0x10000000U;
}
// 2번켜기
else if (No == 2) {
if (CheckClockStatus(5) == 0) {
ClockEnable(5);
}
*(volatile unsigned int*)0x40021000U |= 0x00000400U;
*(volatile unsigned int*)0x40021008U |= 0x00000C00U;
*(volatile unsigned int*)0x4002100CU |= 0x04000C00U;
*(volatile unsigned int*)0x40021018U |= 0x00200000U;
}
// 3번켜기
else if (No == 3) {
if (CheckClockStatus(5) == 0) {
ClockEnable(5);
}
*(volatile unsigned int*)0x40021000U |= 0x00000100U;
*(volatile unsigned int*)0x40021008U |= 0x00000300U;
*(volatile unsigned int*)0x4002100CU |= 0x00000100U;
*(volatile unsigned int*)0x40021018U |= 0x00100000U;
}
// 4번켜기
else {
if (CheckClockStatus(7) == 0) {
ClockEnable(7);
}
*(volatile unsigned int*)0x40021800U |= 0x00100000U;
*(volatile unsigned int*)0x40021808U |= 0x00300000U;
*(volatile unsigned int*)0x4002180CU |= 0x00100000U;
*(volatile unsigned int*)0x40021818U |= 0x04000000U;
}
}
void TurnOffOneLED(unsigned char No)
{
// 1번끄기
if (No == 1) {
*(volatile unsigned int*)0x40021818U &= 0x00000000U;
*(volatile unsigned int*)0x40021818U |= 0x00001000U;
}
else if (No == 2) {
*(volatile unsigned int*)0x40021018U &= 0x00000000U;
*(volatile unsigned int*)0x40021018U |= 0x00000020U;
}
else if (No == 3) {
*(volatile unsigned int*)0x40021018U &= 0x00000000U;
*(volatile unsigned int*)(0x40021018U) |= 0x00000010U;
}
// 4번 끄기
else {
*(volatile unsigned int*)0x40021818U &= 0x00000000U;
*(volatile unsigned int*)(0x40021818U) |= 0x00000400U;
}
}
int btn_check()
{
// sw1 눌렸을 때
if (*(volatile unsigned int*)0x40021810U & 0x00000008U)
{
return 1;
}
// sw2 눌렸을 때
else if ((*(volatile unsigned int*)0x40020810U & 0x00001000U)) {
return 2;
}
// 아무것도 안 눌렸을 때
else {
return 0;
}
}
void portAsetting()
{
// 7segment --> pa2, pa8
// a, b, c, d, e, f, g, dp
// pa2, pa8, pa3, pc2, pc6, pc7, pg6, pg7
*(volatile unsigned int*)0x40023830U |= 0x00000001U;
// mode setting --> output
*(volatile unsigned int*)0x40020000U |= 0x00010050U;
// speed setting --> very high
*(volatile unsigned int*)0x40020008U |= 0x000300f0U;
// pupd --> reserved
*(volatile unsigned int*)0x4002000cU |= 0x000300f0U;
}
void portBsetting()
{
// PB setting --> pb 7,8,9
// 7segment
// a, b, c, d, e, f, g, dp
// pa2, pa8, pa3, pc2, pc6, pc7, pg6, pg7
*(volatile unsigned int*)0x40023830U |= 0x00000002U;
// mode setting --> output
*(volatile unsigned int*)0x40020400U |= 0x00054000U;
// speed setting --> very high
*(volatile unsigned int*)0x40020408U |= 0x000fc000U;
// pupd --> reserved
*(volatile unsigned int*)0x4002040cU |= 0x000fc000U;
}
void portCsetting()
{
// 7segment --> pc2, pc6, pc7
// a, b, c, d, e, f, g, dp
// pa2, pa8, pa3, pc2, pc6, pc7, pg6, pg7
*(volatile unsigned int*)0x40023830U |= 0x00000004U;
// mode setting --> output
*(volatile unsigned int*)0x40020800U |= 0x00005010U;
// speed setting --> very high
*(volatile unsigned int*)0x40020808U |= 0x0000f030U;
// pupd --> reserved
*(volatile unsigned int*)0x4002080cU |= 0x0000f030U;
}
void portFsetting()
{
// pf 10, 9, 8, 7 --> 신호등
// a1, a2, a3, a4
// enble
*(volatile unsigned int*)(0x40023830U) |= 0x00000020U;
// mode setting --> output
*(volatile unsigned int*)(0x40021400U) |= 0x00154000U;
// speed setting --> very high
*(volatile unsigned int*)(0x40021408U) |= 0x003FC000U;
// pupd --> reserved
*(volatile unsigned int*)(0x4002140CU) |= 0x003FC000U;
}
void portGsetting()
{
// 7segment --> pg6, pg7
// a, b, c, d, e, f, g, dp
// pa2, pa8, pa3, pc2, pc6, pc7, pg6, pg7
// enble
*(volatile unsigned int*)(0x40023830U) |= 0x00000040U;
// mode setting --> output
*(volatile unsigned int*)(0x40021800U) |= 0x00005000U;
// speed setting --> very high
*(volatile unsigned int*)(0x40021808U) |= 0x0000f000U;
// pupd --> reserved
*(volatile unsigned int*)(0x4002180CU) |= 0x0000f000U;
}
void sw_setting()
{
// push_sw2 (pc12)
// enable
if (CheckClockStatus(3) == 0) { // ---> *(volatile unsigned int*)0x40023830U |= 0x00000004U;
ClockEnable(3);
}
// input setting
*(volatile unsigned int*)0x40020800U &= 0xfcffffffU; // ~(0x03000000)
// speed setting - low
*(volatile unsigned int*)0x40020808U &= 0xfcffffffU; // ~(0x03000000)
// pupd - no pull
*(volatile unsigned int*)0x4002080cU &= 0xfcffffffU; // ~(0x03000000)
// 외부 스위치 (pc1)
// enable 이미 됨
// input setting
*(volatile unsigned int*)0x40020800U &= 0xfffffff3U; // ~(0x0000000c)
// speed setting - low
*(volatile unsigned int*)0x40020808U &= 0xfffffff3U; // ~(0x0000000c)
// pupd - no pull
*(volatile unsigned int*)0x4002080cU &= 0xfffffff3U; // ~(0x0000000c)
}

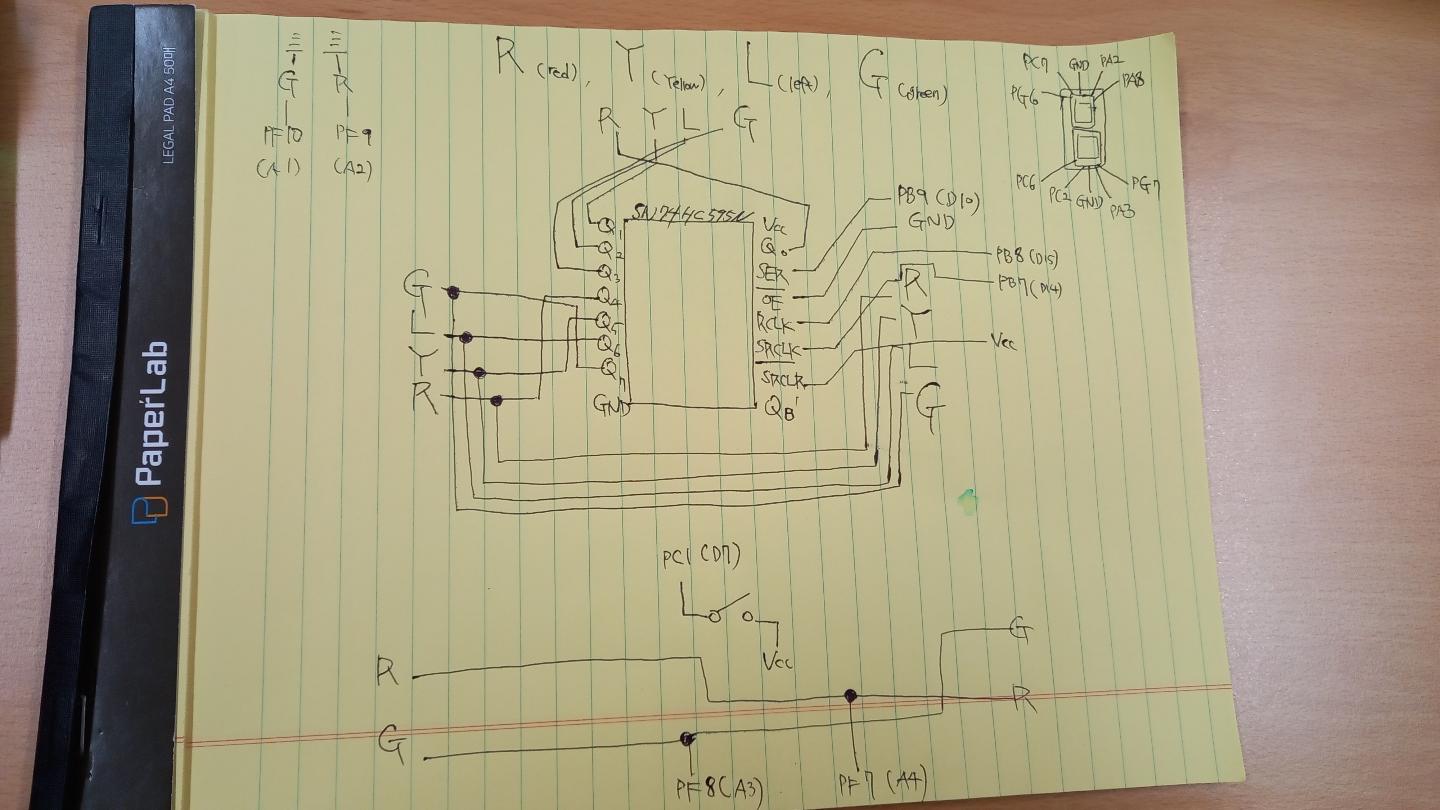

void controlLED(unsigned char data) {
// pb 7, 8, 9
// d14, d15, d10
// clock, latch, input
// 초기값 모두 0
*(volatile unsigned int*)0x40020418U |= 0x01000000U; // pb7
*(volatile unsigned int*)0x40020418U |= 0x01000000U; // pb8
*(volatile unsigned int*)0x40020418U |= 0x02000000U; // pb9
unsigned char i = 7;
while (i <= 7) {
// input에 값써주기
if ((data >> i) & 0x01) {
// 1이면
*(volatile unsigned int*)0x40020418U |= 0x00000200U;
}
else
{
// 0이면
*(volatile unsigned int*)0x40020418U |= 0x02000000U;
}
// clock High --> 1주면 input의 값이 Q0로 들어감
*(volatile unsigned int*)0x40020418U |= 0x00000080U;
// 다시 끄기
*(volatile unsigned int*)0x40020418U |= 0x00800000U;
i--;
// 이렇게 7번 반복하면 원래있던 값들이 한칸씩 쉬프트되면서
// Q0 부터 Q7 까지 data의 비트별 값이 들어감
}
// latch High --> 1을 주면 저장된 값들을 LED에 출력
*(volatile unsigned int*)0x40020418U |= 0x00000100U;
// 다시 끄기
*(volatile unsigned int*)0x40020418U |= 0x01000000U;
}
int trafficLight(int cnt)
{
controlLED(24); // 1번 상황 (파) (빨)
// 횡단보도 세로빨간불 꺼지기
verticalCrossRedOff();
// 횡단보도 세로파란불 켜기
verticalCrossBlueOn();
// 횡단보도 가로파란불 꺼지기
// 횡단보도 가로빨간불 켜지기
horizontalCrossRedOn();
// 버튼눌렀다가 때면 cnt 초기화
if (MyDelayWithCheckSwitchSeg(70) == 2) {
cnt = 0;
countSet(cnt);
}
controlLED(18); // 2번 상황 (노) (빨)
// 횡단보도 세로 파란불 2초 깜빡
if (MyDelayWithCheckSwitchVerticalBlink(20) == 2) {
cnt = 0;
countSet(cnt);
}
// 깜빡임 끄기
*(volatile unsigned int*)(0x40021418U) |= 0x04000000U;
MyDelay(2);
// 횡단보도 세로 빨간불 켜기
verticalCrossRedOn();
controlLED(21); // 3번 상황 (빨/좌) (빨)
if (MyDelayWithCheckSwitch(70) == 2) {
cnt = 0;
countSet(cnt);
}
controlLED(19); // 4번 상황 (빨/노) (빨)
if (MyDelayWithCheckSwitch(20) == 2) {
cnt = 0;
countSet(cnt);
}
// 가로 횡단보도 파란불 켜기
horizontalCrossBlueOn();
// 가로 횡단보도 빨간불 끄기
horizontalCrossRedOff();
controlLED(129); // 5번 상황 (빨) (파)
if (MyDelayWithCheckSwitch(70) == 2) {
cnt = 0;
countSet(cnt);
}
controlLED(33); // 6번 상황 (빨) (노)
if (MyDelayWithCheckSwitchHorizontalBlink(20) == 2) {
cnt = 0;
countSet(cnt);
}
// 가로 횡단보도 깜빡임 끄기
// 끄기
*(volatile unsigned int*)(0x40021418U) |= 0x01000000U;
MyDelay(2);
// 가로 횡단보도 빨간불 켜기
horizontalCrossRedOn();
controlLED(81); // 7번 상황 (빨) (빨/좌)
if (MyDelayWithCheckSwitch(70) == 2) {
cnt = 0;
countSet(cnt);
}
controlLED(49); // 8번 상황 (빨) (빨/노)
if (MyDelayWithCheckSwitch(20) == 2) {
cnt = 0;
countSet(cnt);
}
cnt = (cnt + 1) % 16;
// set 수 내부 led에 나타내기
countSet(cnt);
return cnt;
}
void segment(char n)
{
// A, B, C, D, E, F, G
// pa2, pa8, pa3, pc2, pc6, pc7, pg6
if((n>>6) & 0x01){
// 켜기 pa2
*(volatile unsigned int*)0x40020018U |= 0x00000004U;
}
else{
// 끄기
*(volatile unsigned int*)0x40020018U |= 0x00040000U;
}
if((n>>5) & 0x01){
// 켜기 pa8
*(volatile unsigned int*)0x40020018U |= 0x00000100U;
}
else{
// 끄기
*(volatile unsigned int*)0x40020018U |= 0x01000000U;
}
if((n>>4) & 0x01){
// 켜기 pa3
*(volatile unsigned int*)0x40020018U |= 0x00000008U;
}
else{
// 끄기
*(volatile unsigned int*)0x40020018U |= 0x00080000U;
}
if((n>>3) & 0x01){
// 켜기 pc2
*(volatile unsigned int*)0x40020818U |= 0x00000004U;
}
else{
// 끄기
*(volatile unsigned int*)0x40020818U |= 0x00040000U;
}
if((n>>2) & 0x01){
// 켜기 pc6
*(volatile unsigned int*)0x40020818U |= 0x00000040U;
}
else{
// 끄기
*(volatile unsigned int*)0x40020818U |= 0x00400000U;
}
if((n>>1) & 0x01){
// 켜기 pc7
*(volatile unsigned int*)0x40020818U |= 0x00000080U;
}
else{
// 끄기
*(volatile unsigned int*)0x40020818U |= 0x00800000U;
}
if((n) & 0x01){
// 켜기 pg6
*(volatile unsigned int*)0x40021818U |= 0x00000040U;
}
else{
// 끄기
*(volatile unsigned int*)0x40021818U |= 0x00400000U;
}
}
void MyApp()
{
// port 3개
// pb 7, 8, 9
// d14, d15, d10
// clock, latch, input
// pc 1 --> 외부 스위치
// d7
// pf 10, 9, 8, 7 --> 신호등
// a1, a2, a3, a4
// 7segment
// a, b, c, d, e, f, g, dp
// pa2, pa8, pa3, pc2, pc6, pc7, pg6, pg7
portAsetting();
portBsetting();
portCsetting();
portFsetting();
portGsetting();
sw_setting(); // 내부 sw2 , 외부 스위치 (pc1)
int cnt = 0;
while (1) {
// 신호등
cnt = trafficLight(cnt);
}
}
